European Semi-Gantry Crane

Capacity:2~18t
Span: 10~20m
Lifting height:6m
Lifting speed: 7,8m/min

Apply: European semi gantry crane is based on gantry crane. which consists of cane span structures, lifting and cross travelling mechanism, long travelling mechanism and electrical control system.

Get A Free Quote more

HOT PRODUCTS

L-Shaped Legs Single Girder Gantry Crane with Hoist

U-Shaped Double Girder Gantry Crane

Rail Mounted Container Gantry Crane (RMG Crane)

Gantry Crane with Grab

Description
Specifications
Features

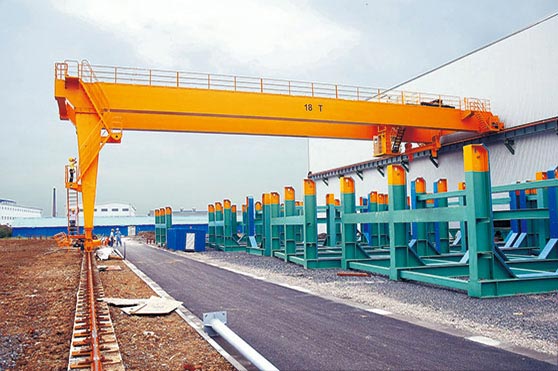

European semi gantry crane is based on gantry crane. which consists of cane span structures, lifting and cross travelling mechanism, long travelling mechanism and electrical control system. Only one side of the crane holds landing leg travelling on the rails on ground. The other side with end carriage running on the wall of workshop. Compared with the normal gantry crane. it is a good choose to save the investment and space.

This type is widely used in open warehouse,material stocks, cement plant, granite industry, port, the freight yard. windy areas and other outwork places to lifting and loading unloading goods.

European semi gantry crane is widely used together with CD. MD and ND Model electric hoist. It is a track traveling small and medium-size crane. Its proper lifting weight is 1~32t, proper span is 5~20m. Its proper working temperature is -20℃-+40℃. We can also customize it according to customers' requirement.

Lifting Capacity			t	2	3	5	10
Span			m	10,12,16,20	10,12,16,20	10,12,16,20	10,12	16,20
Lifting Height			m	6	6	6	6
Traveling Mechanism	Travelling Speed	Ground	m/min	20	20	20	20
		Cab		20,30	20,30	20,30	20,30
	Reducer			LDAC1 LDA1	LDAC1 LDA1	LDAC1 LDA1	LDAC1 LDA1	LDH LDHC
	Wheel Diameter		mm	270	270	270	270	400
Electric Hoist	Type No.			CD1,MD1
	Lifting Speed		m/min	8 ; 0.8/8		8; 0.8/8	7;7/0.7
	Travelling Speed		m/min	20(30)	20(30)	20(30)	20(30)
Rail Recommended				P24	P24	P24,P38	P38
Power Source				3-Phase A.C.50Hz 380V

1. compact structure

2. convenient and safe operation

3. efficient and low noise

4. room saving

5. accurate lifting steady operation
