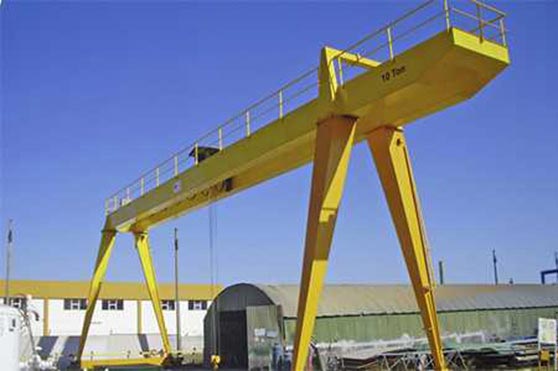

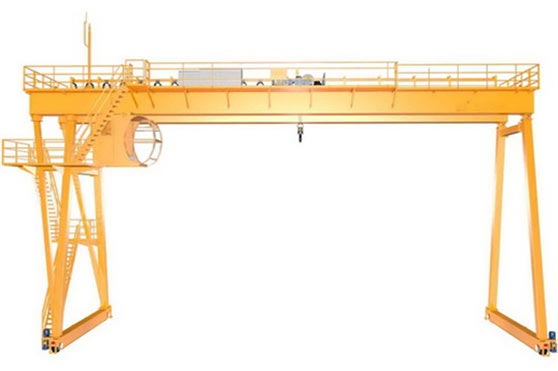

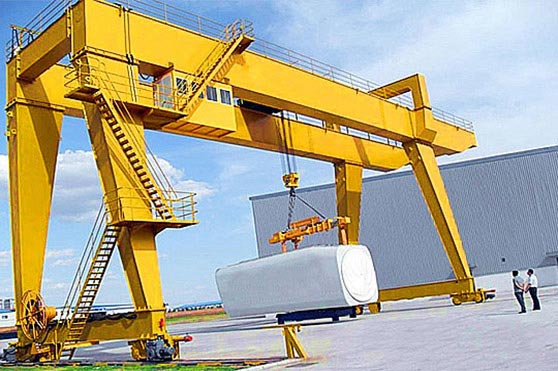

European Standard Gantry Crane
- Capacity:3-20t
- Span: 18-35m
- Lifting height: 10-12m
- Working class: A5
Apply: The MG type European standard gantry crane with hook is designed and manufactured by European FEM advanced standard. Compared to general MG type cran5. its rated capacity is 3~20t, the main feature of is characterized by European trolley.
Get A Free Quote
HOT PRODUCTS
- Description
- Specifications
- Features
The MG type European standard gantry crane with hook is designed and manufactured by European FEM advanced standard. Compared to general MG type crane. its rated capacity is 3~20t, the main feature of is characterized by European trolley. The whole trolley has reducer hard tooth surface. three-in-one drive. adopted PLC+ frequency conversion technology, which comprehensively improves the whole performance of the product, while the overall weight of the crane lighten more than 15% and the wheel press 10~20%. This product can widely used in factory, freight yard. warehouse and other places for cargo handling.
Capacity (ton) |
5 |
10 |
16/3.2 |
20/5 |
32/5 |
50/10 |
||
Span (m) |
18, 22, 24, 26, 30, 35 |
|||||||
Lifting height (m) |
10, 11, 12 |
|||||||
Working class |
A5 |
|||||||
Control way |
Cabin control or remote control |
|||||||
Power source |
380V 50HZ 3phase (Could supply it as yours) |
|||||||
Trolley lifting mechanism | ||||||||
|
Lifting speed
(m/min)
|
Main hook |
11.3 |
8.5 |
7.9 |
7.2 |
7.5 |
5.9 |
|
Auxiliary hook |
- |
- |
14.6 |
15.4 |
15.4 |
10.4 |
||
Trolley traveling mechanism | ||||||||
Traveling speed (m/min) |
37.3 |
35.6 |
36.6 |
36.6 |
37 |
36 |
||
Crane traveling mechanism | ||||||||
Traveling speed (m/min) |
37.3 |
39.7 |
37.3 |
39.7 |
39.4 |
38.5 |
||
Motor power(KW) |
40.8-51.8 |
41.5-52.8 |
80-77 |
84-81 |
99.3-117.3 |
126.5 |
||
Steel track recommended |
43kg/m |
43kg/m or QU70 |
||||||
1. Light self-weight
2. European FEM advanced standard design
3. Triad drive & high working efficiency
4. PLC & Variable Frequency Control Technology
