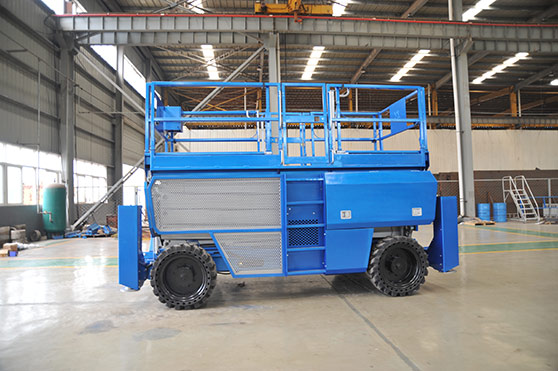

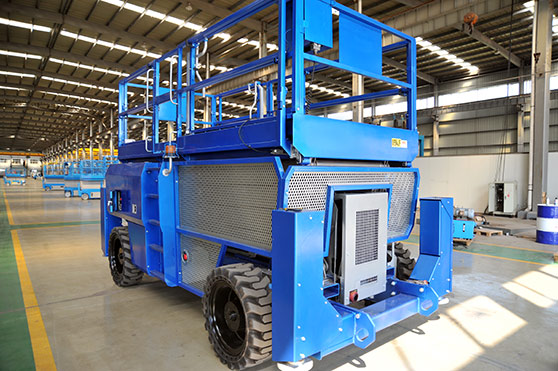

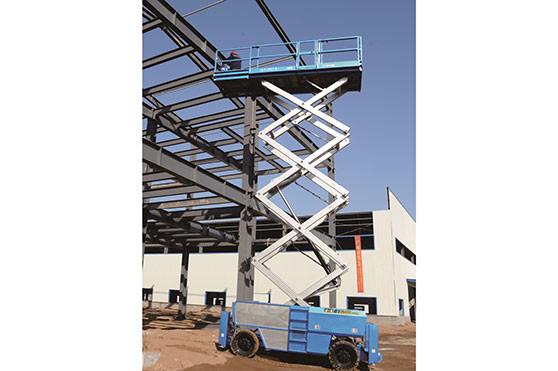

Self-propelled Rough Terrain Scissor Lift

Capacity:680kg-1000kg
Lifting height:MAX 18m

Apply: This rough terrian scissor Lift is widely used in places and applications such as factory plants, railway stations, highways, airports, petroleum companys, power grids, halls, hotels, overhauling, chemical engineering, medicines, army troops, nuclear power industry, fire fighting, stadiums, community property management and etc.

Get A Free Quote more

HOT PRODUCTS

Telescopic Boom Lift

Movable Hydraulic Scissor Lift

Articulating Crawler Boom Lift

Self Propelled Telescopic Boom Lift

Description
Specifications
Features

This rough terrian scissor Lift is widely used in places and applications such as factory plants, railway stations, highways, airports, petroleum companys, power grids, halls, hotels, overhauling, chemical engineering, medicines, army troops, nuclear power industry, fire fighting, stadiums, community property management and etc.

Model	GTJN10	GTJN13	GTJN16
Lift Capacity	1000kg	680kg	680kg
Max Working Height	12m	15m	18m
Max Platform Height	10m	13m	16m
Overall Length	4.88m	4.88m	4.88m
Overall Width	2.27m	2.27m	2.27m
Overall Height	2.98m	2.98m	3.19m
Platform Extension Length	1.3m	1.3m	1.3m
Platform Size	3.98x1.83m	3.98x1.83m	3.98x1.83m
Weight	7940kg	8200kg	9190kg

Completely conquer the complex terrain, maximize productivity

GTJN series rough terrain scissors lifts are four-wheel drive robust vehicle for construction----- the ideal vehicle to boost the productivity in the slab-off outdoor environment. Lifting speed and larger platform are much more competitive. Flexible operation and sufficient loading capacity make the machine quickly arrived at the construction site and get the work done. Maximize your productivity.

Speed and traction force

GTJN series rough terrain scissors lifts can easily and quickly move through uneven or rough areas. Equipment with four- wheel drive and positive- traction system can provide 40% grade ability when moving up on a slope.

Solid rib tire

Special thick rib tires for aerial work platforms make movement more stable, secure and durable.

Self-balancing jack, large loading capacity

450~1000kg loading capacity fully meets the requirement of aircraft maintenance, architecture decoration etc. just pressing the button, you can cope with the uneven ground. The angles of lateral adjustment will less than 5 degree, the angle of forward-backward adjustment will less then 4 degree and you will reach a precise self-balancing.

Larger work platform

With maximum 6.57x1.83m of operating platform, GTJN series will be best solution for conditions of move workers, materials and tools.
